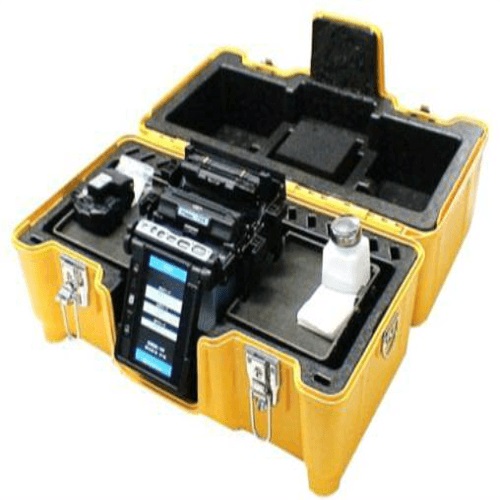

Specification Fitel S178A
|
| Applicable Fibers |
SM, MM, DSF, NZD, EDF, BIF/UBIF (Bend insensitive fiber) |
| Cladding Diameter |
80~150 μm |
| Coating Diameter |
160~900 μm |
| Fibers Cleave Length |
5~16 mm |
| Average Splice Loss |
SM: 0.02 dB, MM: 0.01 dB, DSF: 0.04 dB, NZD: 0.04 dB |
| Splice Time |
7 seconds (semi-auto mode)
9 seconds (regular mode) |
| Heat Time |
25 seconds (S922: 40mm Sleeve, S921: 60mm Sleeve) (Pre-heat mode)
31 seconds (S922: 40mm Sleeve, S921: 60mm Sleeve) (regular mode) |
| Splice Programs |
Max. 150 |
| Automatic Splicing Selection |
SM: SM, DSF, NZD, BIF/UBIF, MM: MM |
| Heat Programs |
Max. 18 |
| Automatic Heating Start |
Available |
| Applicable Sleeves |
20/40/60 mm |
| Fiber Holding |
Tight holder (Loose tube applicable) or Fiber Holder System |
| Tension Test |
1.96N |
| Fiber Image Magnification |
304X, 608X |
| Splice Memory |
Max. 2,000 |
| Image capture Capacity |
Last 100 images to be automatically captured + Up to 24 images to be stored permanently |
| Dimension |
127W × 199D × 105H mm (not including shock absorber)
159W × 231D × 130H mm (including shock absorber) |
| Weight |
1.9 kg (without battery)
2.3 kg (with two batteries) |
| Monitor |
3.5” color LCD monitor |
| Data Output |
USB ver.2.0 mini |
| Displaying Language |
20 languages (e.g. English, Spanish, Japanese, Chinese) |
| Battery Capacity |
Typical 80 splice/heat cycles with single battery
Typical 200 splice/heat cycles with 2 batteries |
| Altitude |
5,000 mh |
| Operating Temperature |
-10 to +50 °C (without excessive humidity) |
| Storage Temperature |
-40 to +60 °C (without excessive humidity) |
| Power Source |
AC Input 100 to 240 V (50/60 Hz), DC Input 11 to 17 V |
