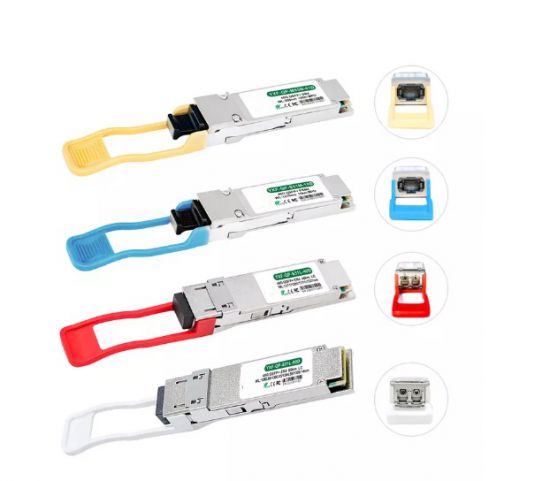

40G QSFP+ Module LC MPO Single-Mode Transceiver 40GBASE SR4 LR4 ER4 ZR4 Module with DDM
Transmission rate: The transmission rate of 40G optical modules is 40 Gbps, which enables them to transmit data with high bandwidth and is suitable for large-capacity data transmission.
Fiber type: 40G optical modules usually use multimode fiber (MMF) or single-mode fiber (SMF) for transmission. Multimode fiber is usually suitable for short-distance transmission, while single-mode fiber is suitable for long-distance transmission.
Transmission distance: The transmission distance of 40G optical modules can vary depending on the type of optical fiber used. In multimode fiber, the transmission distance within 400 meters can usually be achieved, while in single-mode fiber, the transmission distance can reach tens or hundreds of kilometers.
|
Part No.
|
Data Rate
|
Wavelenth
|
Distance
|
Source
|
Output Power (dBm)
|
Sensitivity (dBm)
|
Connector
|
Voltage
|
|
QP-M85L-01D
|
40G
|
850nm/880nm/910nm/940nm
|
100m
|
VCSEL/PIN
|
5~-4dBm
|
＜-7dBm
|
LC
|
3.3V
|
|
QP-M85M-01D
|
40G
|
850nm
|
100m
|
VCSEL/PIN
|
2~-7.5dBm
|
＜-10.3dBm
|
MPO
|
3.3V
|
|
QP-S31L-02D
|
40G
|
1271/1291/1311/1331
|
2km
|
DFB/PIN
|
2.3~-7dBm
|
＜-11.5dBm
|
LC
|
3.3V
|
|
QP-M31M-10D
|
40G
|
1310nm
|
2km
|
DFB/PIN
|
0.5~-8.2dBm
|
＜-12.6dBm
|
MPO
|
3.3V
|
|
QP-40G-LX4
|
40G
|
1271/1291/1311/1331
|
100m/
2KM
|
DFB/PIN
|
MM：3.5~-5dBm
SM：0~-7dBm
|
＜-11.5dBm
|
LC
|
3.3V
|
|
QP-S31L-10D
|
40G
|
1271/1291/1311/1331
|
10km
|
DFB/PIN
|
2.3~-7dBm
|
＜-11.5dBm
|
LC
|
3.3V
|
|
QP-S31L-20D
|
40G
|
1271/1291/1311/1331
|
20km
|
DFB/PIN
|
2.3~-7dBm
|
＜-11.5dBm
|
LC
|
3.3V
|
|
QP-S31L-40D
|
40G
|
1271/1291/1311/1331
|
40km
|
DFB/PIN
|
＞2dBm
|
＜-13dBm
|
LC
|
3.3V
|
|
QP-S31L-40D
|
40G
|
1271/1291/1311/1331
|
40km
|
DFB/APD
|
4~0dBm
|
＜-21dBm
|
LC
|
3.3V
|
|
|
