Specifications
* Up to 20 km transmission on SMF
* Up to 10.3125Gbps
* 1550nm DFB laser and 1310 PIN receiver
* Electronic Interface compliant with SFF-8431
* 2-wire interface for integrated Digital Diagnostic monitoring
* SFP+ MSA package with single LC connector
* Very low EMI and excellent ESD protection
* +3.3V power supply
* Power consumption less than 1.0W
* Operating case temperature: 0~+70°C
|
Model
|

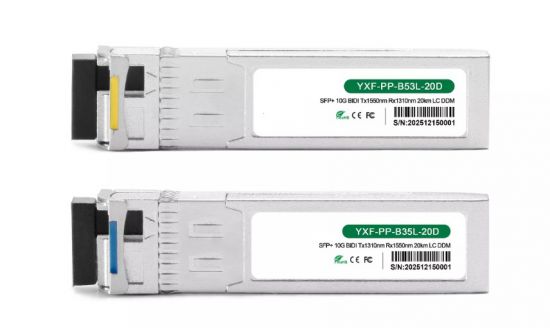

YXF-PP-B53L-20D
|
Distance
|
20km-200km
|
|
Form Factor
|
SFP+
|
Max Data Rate
|
10.3125Gbps
|
|
Wavelength
|
Tx1550nm Rx1310nm
|
Transmitter Type
|
DFB
|
|
Media
|
SMF
|
Receiver Type
|
PIN
|
|
Output Power (dBm)
|
1~-6dBm
|
Sensitivity (dBm)
|
＜-14dBm
|
|
Voltage
|
3.3V
|
Temperature Range (℃）
|
0-70
|
|
Connector
|
Simplex LC
|
DDM/DOM
|
√
|
|
Protocols
|
SFP+MSA Compliant,CPRI,eCPRI
|
Warranty
|
3 years
|
|
