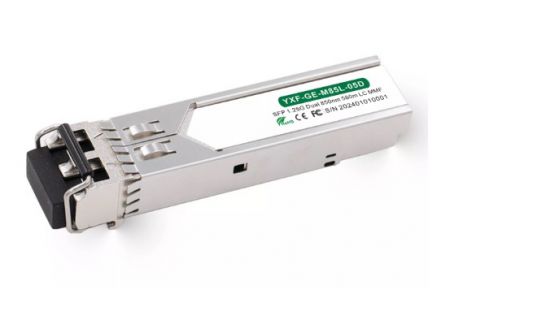

Compatible 1000BASE-SX SFP Transceiver Module (MMF, 850nm, 550m, LC, DOM)
compatible SFP transceiver supports up to 550m link lengths over multi-mode fiber (MMF) using a wavelength of 850nm via an LC connector. Each SFP transceiver module is individually tested to be used on all the current popular switches, routers, servers, network interface card (NICs) etc.
Featuring low power consumption, the hot swappable 1G SFP transceiver is ideal for Internet Service Provider (ISP) Gigabit Ethernet communication links, Enterprise LAN & SAN Networks, Data Center LAN & SAN Networks and other optical links.
|
Part Number
|
YXF-GE-M85L-05D
|
Vendor Name
|
Optone/YXFiber
|
|
Form Factor
|
SFP
|
Max.Data Rate
|
1.25G
|
|
Wavelength
|
850nm
|
Max.Cable Distance
|
550m@50/125μm OM2 MMF
275m@62.5/125μm OM1 MMF
|
|
Connector
|
Duplex LC
|
Media
|
MMF
|
|
Transmitter Type
|
VCSEL
|
Receiver Type
|
PIN
|
|
DDM/DOM
|
Supported
|
Commercial Temperature Range
|
0 to 70℃(32 to 158F)
|
|
TX Power
|
-9.5--3dBm
|
Receiver Sensitivity
|
<-17dBm
|
|
Typical Power Consumption
|
≤0.8w
|
Receiver Overload
|
-3dBm
|
|
Bit Error Ratio (BER)
|
1E-12
|
Extinction Ratio
|
>9dB
|
|
EMC(Electro Magnetic
Compatibility)
|
Supported
|
MTBF(SX)
|
2,457,002 Hours
|
|
