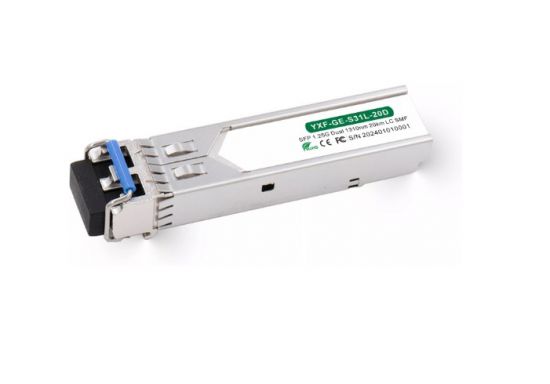

Compatible 1000BASE-LX/LH SFP Transceiver Module (SMF, 1310nm, 20km, LC, DOM)
compatible SFP transceiver supports up to 20km link lengths over LC duplex SMF fiber. Each SFP transceiver module is individually tested to be used on all the current popular switches, routers, servers, network interface card (NICs) etc.
Featuring low power consumption, the hot swappable 1G SFP transceiver is ideal for Internet Service Provider (ISP) Gigabit Ethernet communication links, Enterprise LAN & SAN Networks, Data Center LAN & SAN Networks and other optical links.
|
Part Number
|
YXF-GE-S31L-20D
|
Vendor Name
|
Optone/YXFiber
|
|
Form Factor
|
SFP
|
Max.Data Rate
|
1.25G
|
|
Wavelength
|
1310nm
|
Max.Cable Distance
|
20km
|
|
Connector
|
DuplexLC
|
Optical Components
|
FP
|
|
Media
|
SMF
|
DOM Support
|
Yes
|
|
TX Power
|
-9.5--3dBm
|
Receiver Sensitivity
|
<-23dBm
|
|
Commercial Temperature Range
|
0 to 70℃(32 to 158°F)
|
Protocols
|
SFF-8472 MSA Compliant,IEEE 802.3ah-2004,IEEE
802.3z
|
|
